Advantages of the Convergent Procedure

UNC Cardiac Surgery and Electrophysiology Services

Andy C. Kiser, MD  Paul Mounsey, MD, Updated March 2014

(Reproduced with permission.)

Cardiac surgeons continually strive toward less invasive procedures which avoid approaches like full median sternotomies and thoracotomies. However, reports of minimally invasive cardiac surgical procedures may include hemi-sternotomies, mini-thoracotomies, or full median sternotomies without cardiopulmonary bypass.

True minimally invasive procedures must not only be defined by the size of the incision, but also by the invasiveness into the patient’s daily lifestyle and the impact on their quality of life.

There are a variety of techniques and devices in use for the surgical treatment of atrial fibrillation (AF). The current gold standard for the surgical treatment has been the Cox cut and sew maze procedure. There have been variations through the years leading to a host of other surgical AF procedures, such as the Wolf mini-maze1, practiced by many surgeons. Other techniques create myocardial lesions using some form of radiofrequency energy, laser, cryothermy or high-frequency ultrasound. All of these techniques require access to the heart through either a full sternotomy or less-invasive approaches with incisions on the left and/or right side of the chest. Some techniques require cardiopulmonary bypass and sometimes cardioplegia to stop the heart entirely.2,3 Until recently, no current technique or device provided access to the posterior left atrium directly.

Pericardioscopy is a totally endoscopic technique that provides direct visualization of, and access to, the epicardial surface of the beating heart without the need for cardiopulmonary bypass or prolonged postoperative recovery. Unlike a subxyphoid approach, pericardioscopy provides access to the heart via the central tendon of the diaphragm. This allows direct vision of the posterior cardiac structures with minimal hemodynamic compromise. Such access and visualization of the epicardial cardiac surface has enabled epicardial ablation techniques, like the Convergent Procedure, as a treatment for atrial fibrillation.4,5 Pericardioscopy eliminates the need for sternotomy or thoracotomy when access to the epicardial surface is necessary.

Convergent Procedure - Transdiaphragmatic Pericardioscipic Access

Transdiaphragmatic Pericardioscipic Access



The surgical treatment of atrial fibrillation (AF) is based upon the creation of an anatomical pattern of myocardial scar. The Corridor Procedure 6, the Radial Maze Procedure,6 and the Cox maze I-III7,8 are anatomical patterns designed to disrupt the re-entry circuits of AF by dividing the atria into non-conductive segments. Electrophysiologists, in comparison, use endocardial catheters and electrodes to identify the triggers causing AF and direct their treatments towards these foci of abnormal electrical activity in the atria. The individual success of these approaches, either surgical or endocardial, has been limited by technical complexity and/or less than desirable outcomes.

A truly successful and adoptable AF treatment has always seemed to be just out of reach. The acclaimed gold standard cut and sew maze procedure reports exceptional outcomes but remains a complex procedure that is rarely performed.9,10 The mini-maze11 and pulmonary vein isolation12reduce procedural complexity by decreasing the number of lesions and by eliminating cardiopulmonary bypass. However, both the surgeons and the cardiologists have demonstrated that when treatment is limited to the left atrium, outcomes suffer as a consequence.13,14 The endocardial, catheter-based AF ablations, not unlike the surgical procedures, remain long and technically difficult procedures performed by relatively few electrophysiologists. The high rate of repeat procedures and less than desirable long-term outcomes have been disappointing.15 Unfortunately, surgeons and cardiologists seldom collaborate in the development of new technologies and innovative approaches to overcome these individual procedural shortcomings.

The Convergent Procedure has been developed by a multidisciplinary team of cardiologist and cardiac surgeons to address the procedural and communication barriers. The Convergent Procedure is the simultaneous creation of a surgeon’s PEX epicardial ablation pattern and electrophysiologist’s endocardial ablation pattern (Figure 1).

Convergent Procedure - Convergent Procedure Lesion Pattern

Convergent Procedure Lesion Pattern


The surgeon’s ability to effectively create visible, and therefore contiguous, epicardial ablation lines has greatly reduced the amount of endocardial tissue which must be ablated to complete a successful trans-septal catheter procedure. The integration of a surgeon’s anatomical approach to AF with the physiological approach of the electrophysiologist’s has led to the development of the Convergent Procedure.

This convergence of technologies and expertise provides or allows for:

1. The creation of a complete, bi-atrial, endocardial and epicardial ablation pattern without a chest incision or cardiopulmonary bypass;

2. Intra-operative metrics to confirm procedural success;

3. Integrated patient care by cardiology and cardiac surgery; and

4. Decreased length of hospital stay and the number of repeat ablation procedures.


At the UNC Center for Heart & Vascular Care, we have created a multidisciplinary service that integrates the care of Arrhythmia patients. Evaluation of each case by the multidisciplinary team of arrhythmia experts ensures an individualized, yet consensus, treatment plan. Without this integrated approach, the best treatment option may not be available or may require much longer wait times, more travel and more inconvenience and delay for the patient.

The patient’s clinical presentation is vitally important to developing the multidisciplinary treatment plan. Left atrial size, AF type and AF duration are significant contributory factors. We advocate a 24-hour Holter monitor on all patients under evaluation to document the degree of AF burden. Additional evaluation includes a trans-thoracic echocardiogram and cardiac catheterization or stress test to exclude structural heart disease in the setting of AF.

The consensus opinion by the Heart Rhythm Society Task Force states that, “stand-alone AF surgery should be considered for symptomatic AF patients who prefer a surgical approach, have failed one or more attempts at catheter ablation, or are not candidates for catheter ablation.” Left atrial size and AF duration are important factors in this decision process. When the left atrium is larger than 6.0 cm or the duration of AF is greater than 5 years, the long term success for the Cut and Sew maze procedure are under 80% (Figure 2). It is difficult for the electrophysiologist to consistently and effectively complete pulmonary vein isolation when the left atrium is greater than 5.0 cm. Therefore, when a patient has paroxysmal AF and the left atrium is under 4.5-5.0 cm, we recommend percutaneous catheter ablation. In this population, simple pulmonary vein isolation may be effective in over 80% of patients.16

Patients with paroxysmal AF and a left atrium greater than 4.5 cm and those with persistent and long-standing persistent AF demonstrate the best outcomes when a bi-atrial lesion pattern is created. Surgeons who have experience with minimally invasive approaches choose the ablation technology best suited for their technique. Whichever approach and device is used, a comprehensive lesion pattern of contiguous and transmural lesions are essential. Persistence and intra-operative verification of lesion and pattern integrity is crucial. The Convergent Procedure has established new criteria for lesion integrity by the verification of procedural completion by endocardial electrophysiologic metrics. The Convergent Procedure is not complete until pulmonary vein isolation and posterior left atrial exclusion is confirmed, the coronary sinus is ablated, and a cavo-tricuspid isthmus lesion is created. These metrics provide confidence of procedural success and set new standards for the hybrid treatment of persistent and long-standing persistent AF.

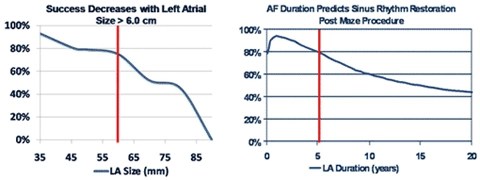

Left: Success Decreases with Left Atrial Size>6.0cm; Right: AF Duration Predicts Sinus Rhythm Restoration Post Maze Procedure

Left: Success Decreases with Left Atrial Size>6.0cm; Right: AF Duration Predicts Sinus Rhythm Restoration Post Maze Procedure



There have been many minimally invasive approaches to treat AF, all based primarily upon the original work by Cox and his maze procedure. By integrating electrophysiology and cardiac surgery in a hybrid AF treatment, new procedural and perioperative standards have been established at our institution. The initial outcomes utilizing this multidisciplinary approach are excellent and patient satisfaction is overwhelmingly positive.

Reproduced with permission.17
